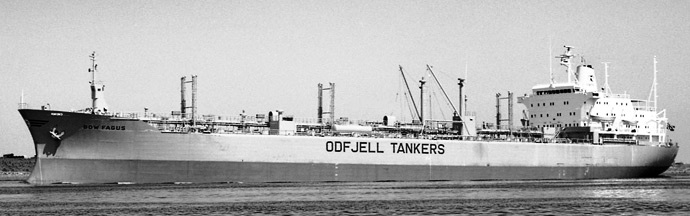

Bow Fagus

Type:

Motorskip, tanker
motor ship, tanker.

Off.no:

7359424

Flagg (flag):

NOR

Havn(port):

Bergen

Byggeår (year built):

1975/04

Bnr (Sno).:

1216

Bygger (yard):

Oy Wärtsilä Ab, Turku, Finland.

Eier (owner):

K/S A/S Chem-Tank I, Bergen.

Disponent (manager):

A/S Rederiet Odfjell, Bergen.

Klasse (Class).:

DnV +1A1 Tankskip for Chemicals E0

Tonnasje (Tonnage):

31.502 tdw, 17.919 brt, 12.104 nrt.

Dimensjoner (size):

L: 170,68 m-B: 25,93 m-D: 14,06 m.

Lasthåndtering
(cargo handling):

3 x 10 lastetanker.
2 pumperom.
18 lossepumper med samlet kapasitet 4.800 m³/time.

Kjølemaskineri
(Ref. machinery):

Navigasjonsutstyr:

Manøversystemer
(syst. for manouvering):

Dekksmaskineri
(deck machinery):

Kommunikasjon (comm.):

Kallesignal (Call sign):

JXRU / JXRU3

Fremdrift (propulsion):

1 dieselmotor, Sulzer 6RND76. 2-takt/enkltv., 6-sylinder, syl. dim.: 760 x 1.550 mm. 12.000 BHK ved 122 o. min. Bygget av Oy Wärtsilä Ab, Turku, Finland.

Fart/forbr. (speed/cons.):

16,0 knop ved et forbruk på 48 t/døgn.
Bunkerskapasitet 2.333 t.

Hjelpemaskineri (aux):

3 dieselgen., hver 660 kW.
1 dieselgen. (nød) 58 kW.

Tot. el. kraft (el. power):

1.980kW/440-220VAC/60Hz.

Kjeler (boiler):

2 hjelpekjeler (aux. boilers). Arbeidstrykk 12.3 bar.
1 ekshaustkjele (economizer). Arbeidstrykk 13.2 bar.

Bemanning (crew):

History in English:

1974 Keel laid 10/06.
Built as BOW FAGUSL at Oy Wärtsilä Ab, Turku, Finland for K/S A/S Chem-Tank I (A/S Rederiet Odfjell), Bergen. Launched 01/10.
1975 Completed 18/04.
1987 Registered in NIS, Bergen.

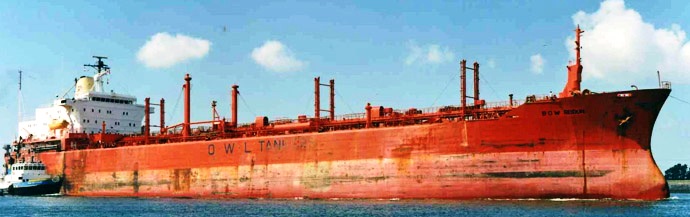

1989 Sold in December to K/S Reidun (V. Ships Norway A/S, Oslo), Bergen-NIS. Renamed BOW REIDUN.
1990 Exploded, broke in two and sank 18/12 in position 22.29N-119.17E 60 nm south of Taiwan whilst on a voyage from Osaka, Japan to Singapore in ballast. 2 men died, one Filipino seaman and the Norwegian Chief engineer. 4 Norwegian offisers and 19 Filipino seamen entered a liferaft and drifted for 10 hours before a Taiwan fishing boat picked them up and landed them in Kaohsiung, Taiwan.
